Power Point Cpilllar Connector

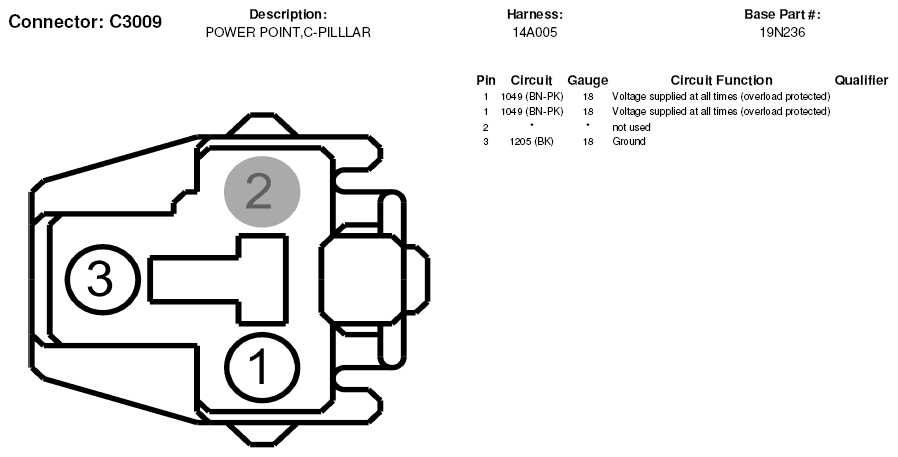

Fig 1: Power Point Cpilllar Connector End View (C3009)
G05181703Courtesy of FORD MOTOR CO.
