Power Window Motor Connectors

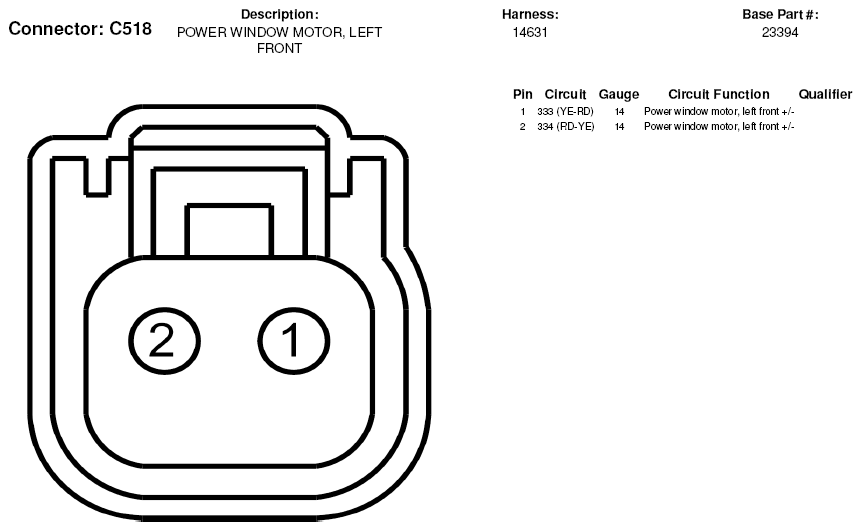

Fig 1: Power Window Motor Connector End View (C518)
G05181594Courtesy of FORD MOTOR CO.

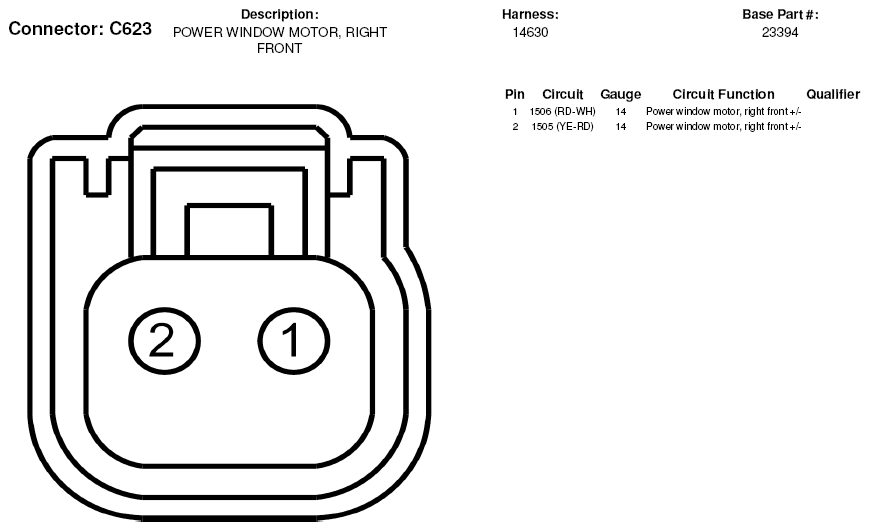

Fig 2: Power Window Motor Connector End View (C623)
G05181605Courtesy of FORD MOTOR CO.
