Driven Sprocket Support: Notes

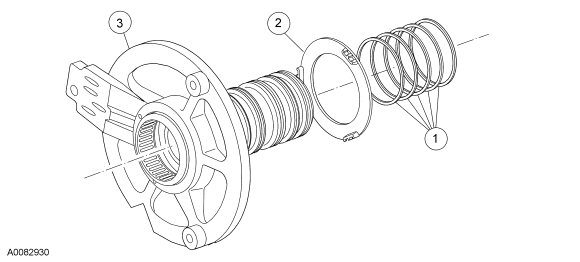

Fig 1: Exploded View Of Driven Sprocket Support Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7D019	Forward clutch cylinder seals
2	7D014	Front support thrust washer
3	7G166	Driven support sprocket
