Transaxle Support Insulator: Notes

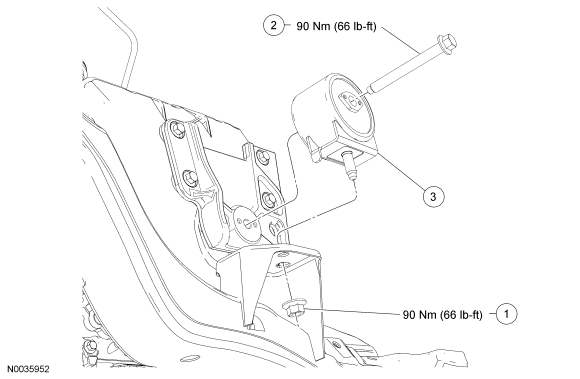

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705605	Transmission support insulator nut
2	W500752	Transmission support insulator bolt
3	6F063	Transmission support insulator
