Wheel Speed Sensor - Front: Notes

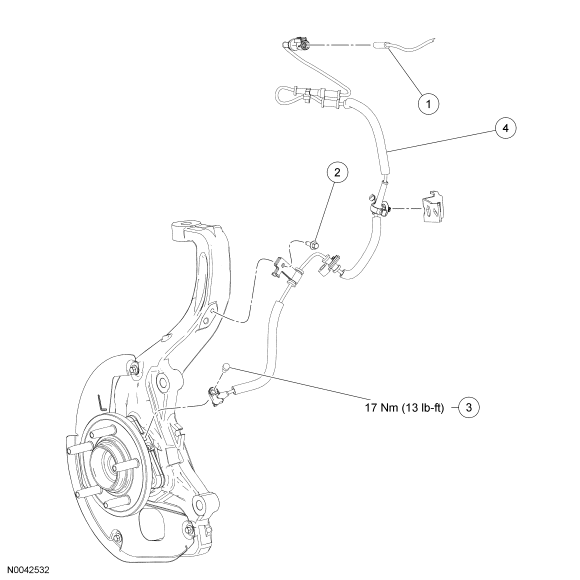

Fig 1: Exploded View Of Front Wheel Speed Sensor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14398	Wheel speed sensor electrical connector
2	-	Wheel speed sensor harness bolt
3	-	Wheel speed sensor bolt (part of 2C204)
4	2C204	Wheel speed sensor
