Accelerator Pedal - Fixed
›
Notes
Accelerator Pedal - Fixed: Notes

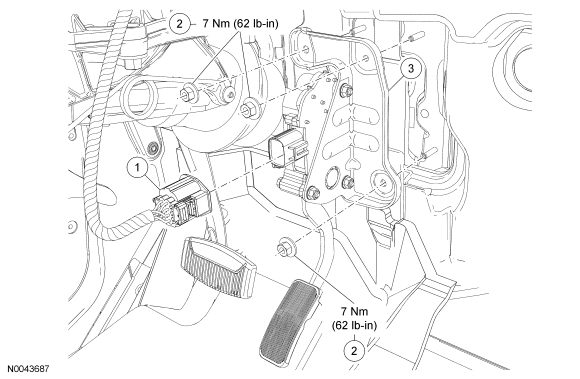

Fig 1: Exploded View Of Accelerator Pedal - Fixed With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Accelerator pedal electrical connector (part of 14401)
2
90907
Accelerator pedal assembly nuts (3 required)
3
9F836
Accelerator pedal assembly
