Accelerator Pedal and Shaft: Notes

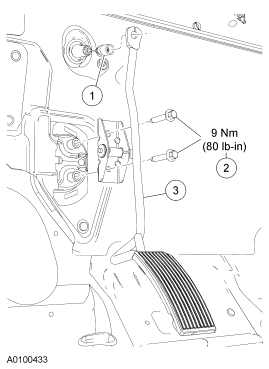

Fig 1: Exploded View Of Accelerator Pedal & Shaft With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Accelerator cable to pedal (part of 9A758)
2	W500300	Accelerator pedal and shaft assembly bolts (2 required)
3	9N736	Accelerator pedal and shaft assembly
