Heated Seat Module - Rear: Notes

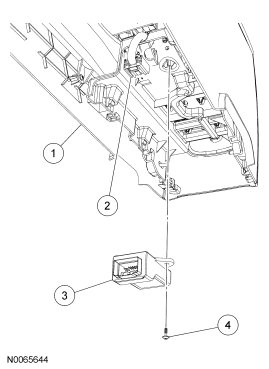

Fig 1: Heated Seat Module - Rear

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front floor console
2	-	Electrical connector
3	14C724	Heated seat module, rear
4	-	Screw
