A/C Pressure Transducer Sensor Connector
A/C Pressure Transducer Sensor Connector

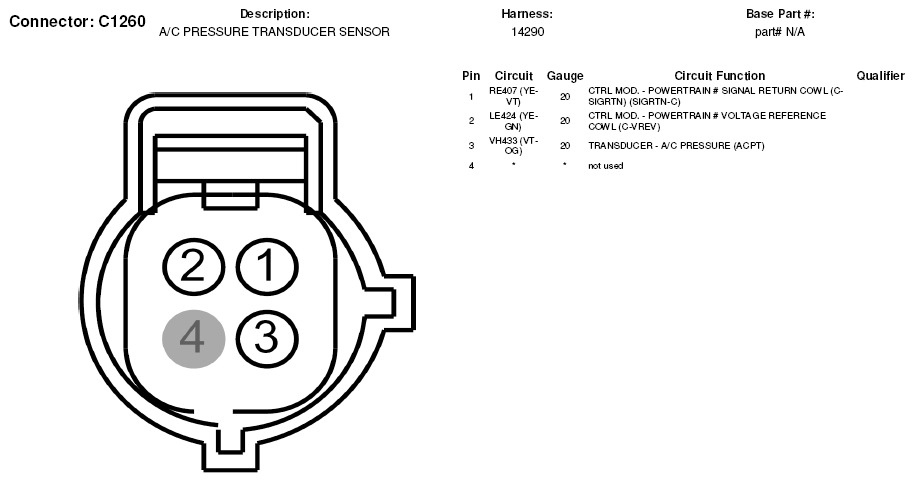

Fig 1: A/C Pressure Transducer Sensor Connector End View (C1260)
