Active Torque Control Coupling Solenoid Connector
Active Torque Control Coupling Solenoid Connector

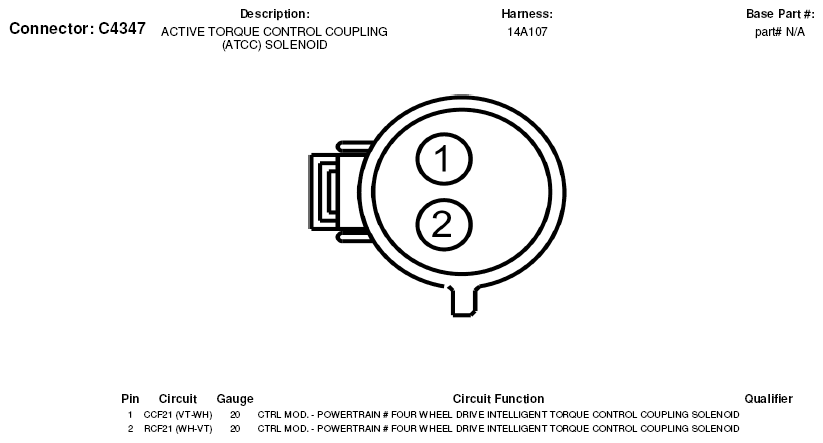

Fig 1: Active Torque Control Coupling Solenoid Connector End View (C4347)
