Adjustable Pedal Switch Connector

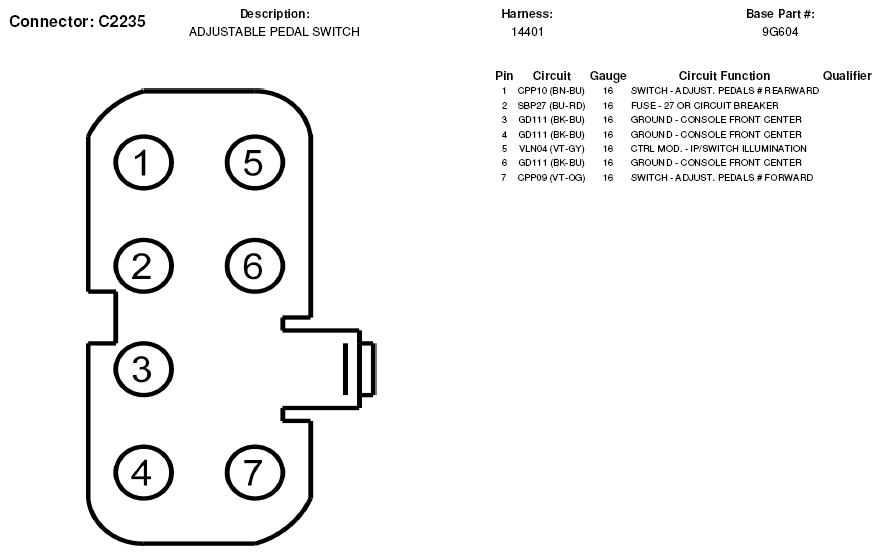

Fig 1: Adjustable Pedal Switch Connector End View (C2235)
G05603462
