Auxiliary Relay Box 1 Connector
Auxiliary Relay Box 1 Connector

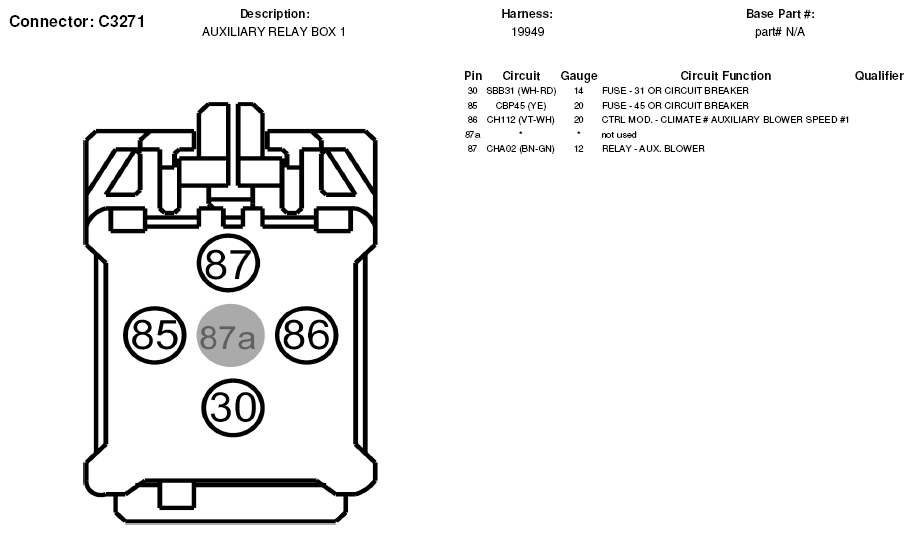

Fig 1: Auxiliary Relay Box 1 Connector End View (C3271)
