Auxiliary Relay Box 2 Connector
Auxiliary Relay Box 2 Connector

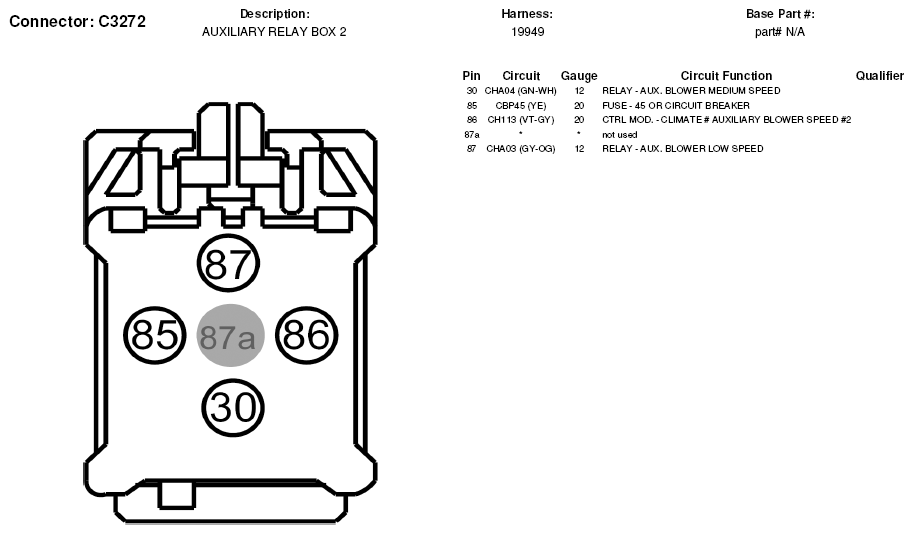

Fig 1: Auxiliary Relay Box 2 Connector End View (C3272)
