Home › Mercury › 2008 › Sable Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Blower Motor Resistor Connector

Blower Motor Resistor Connector

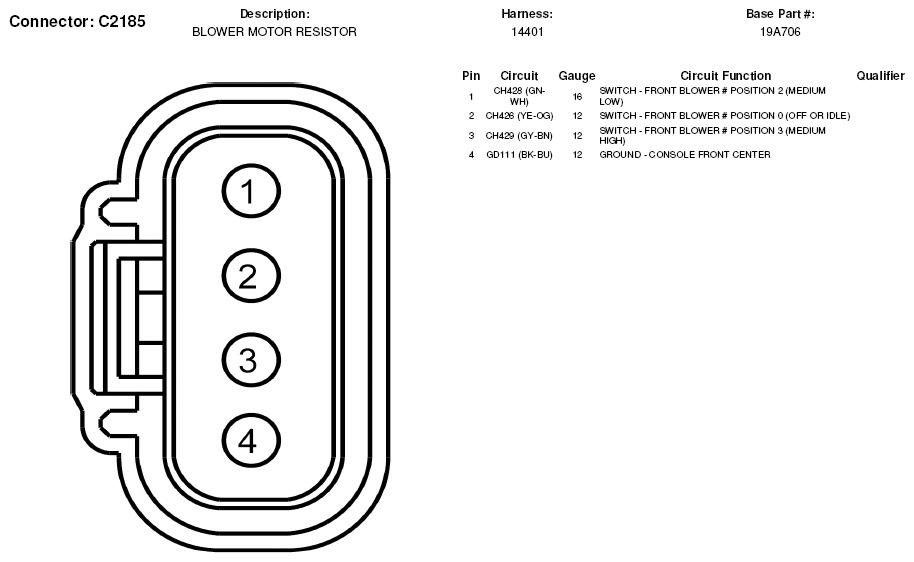

Fig 1: Blower Motor Resistor Connector End View (C2185)
G05603461
