Brake Pedal Position Switch Connector

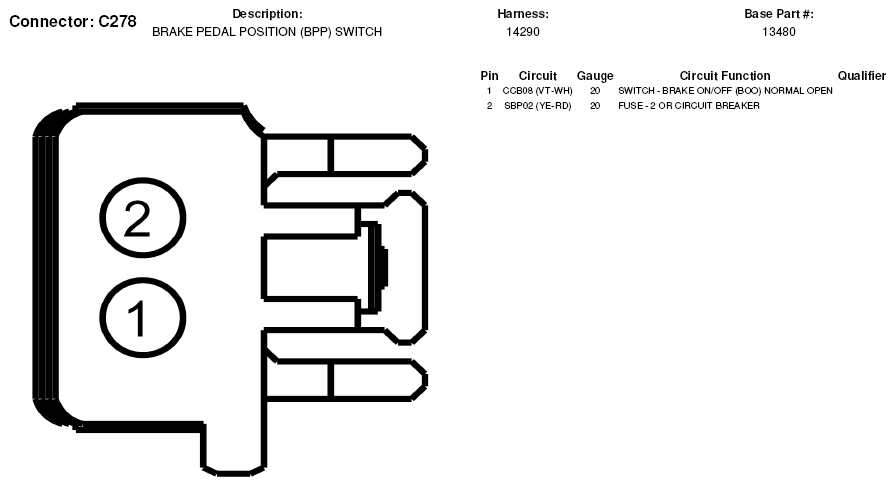

Fig 1: Brake Pedal Position Switch Connector End View (C278)
G05603311
