Clockspring Connectors

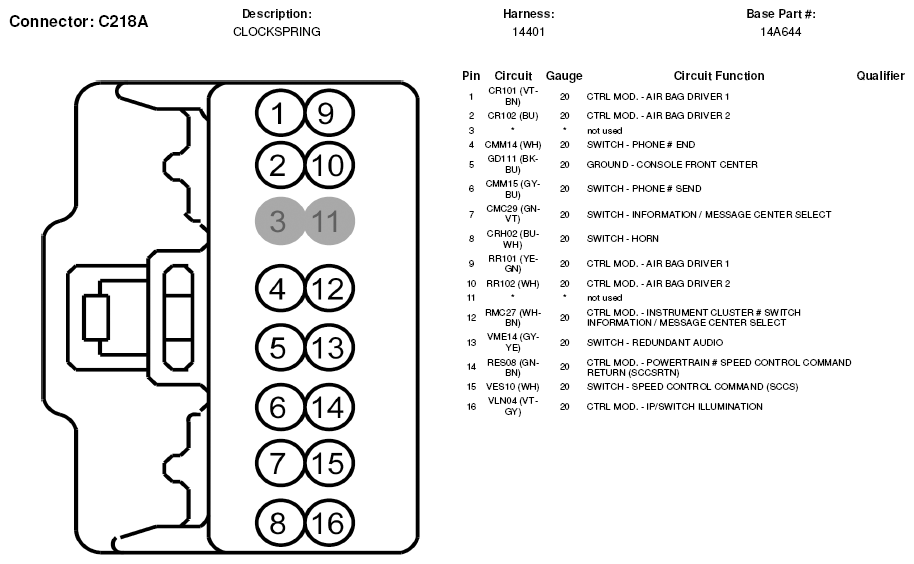

Fig 1: Clockspring Connector End View (C218A)
G05603294

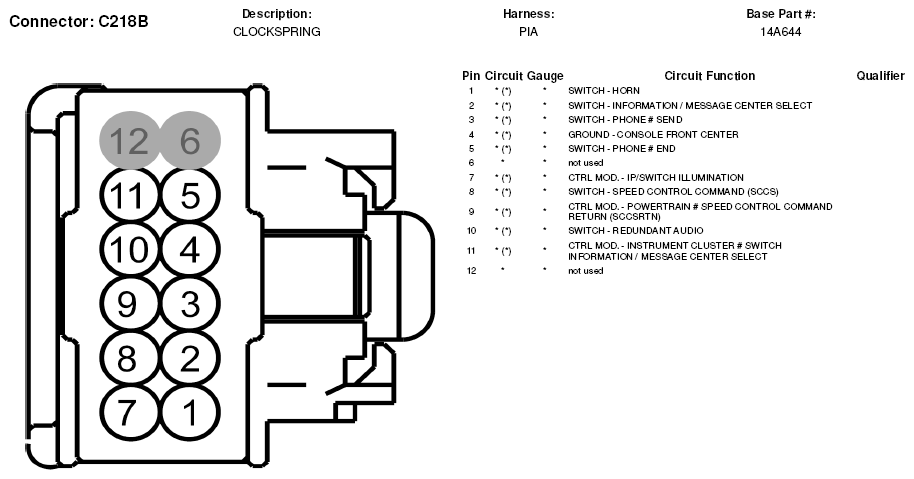

Fig 2: Clockspring Connector End View (C218B)
G05603295
