Driver 2 Side Impact Sensor Connector
Driver 2 Side Impact Sensor Connector

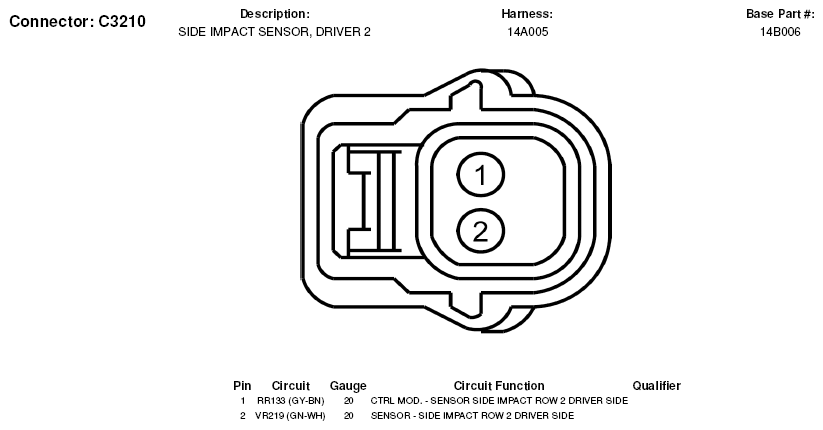

Fig 1: Driver 2 Side Impact Sensor Connector End View (C3210)
