Driver Safety Canopy Module Connector

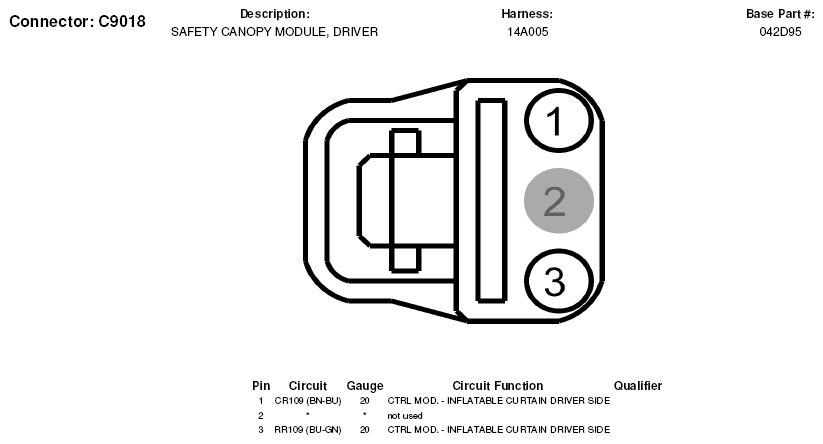

Fig 1: Driver Safety Canopy Module Connector End View (C9018)

G05603555

Fig 2: Driver Safety Canopy Module Connector End View (C9031)

G05603562
