Driver Seat Position Sensor Connector

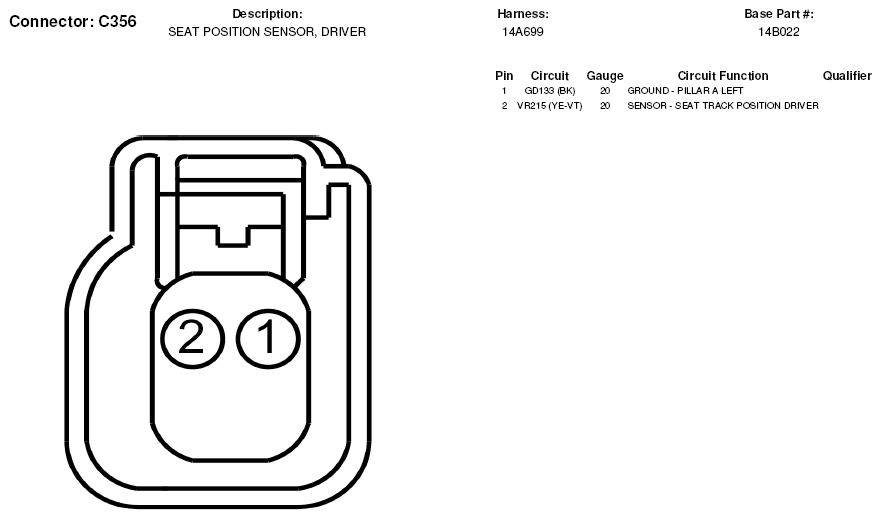

Fig 1: Driver Seat Position Sensor Connector End View (C356)
G05603338
