Driver Side Front Power Window Motor Connector

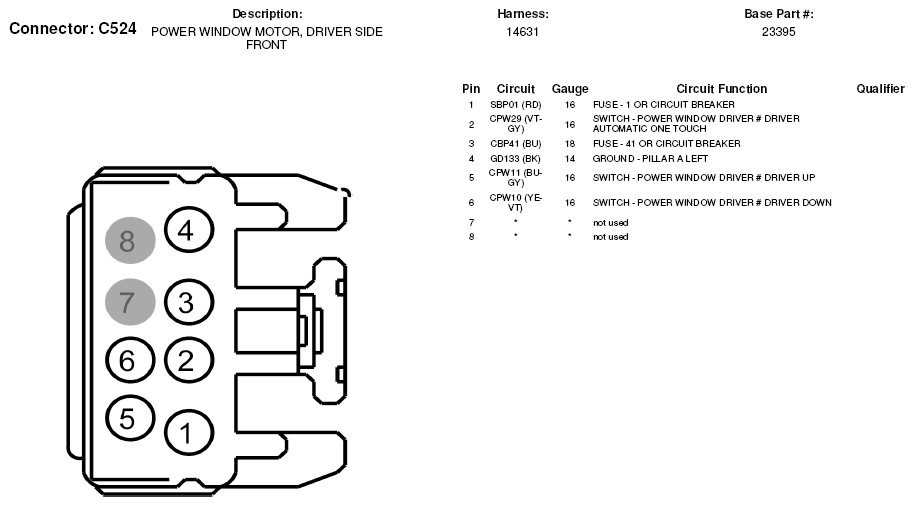

Fig 1: Driver Side Front Power Window Motor Connector End View (C524)
G05603375
