Electronic Throttle Control Connector

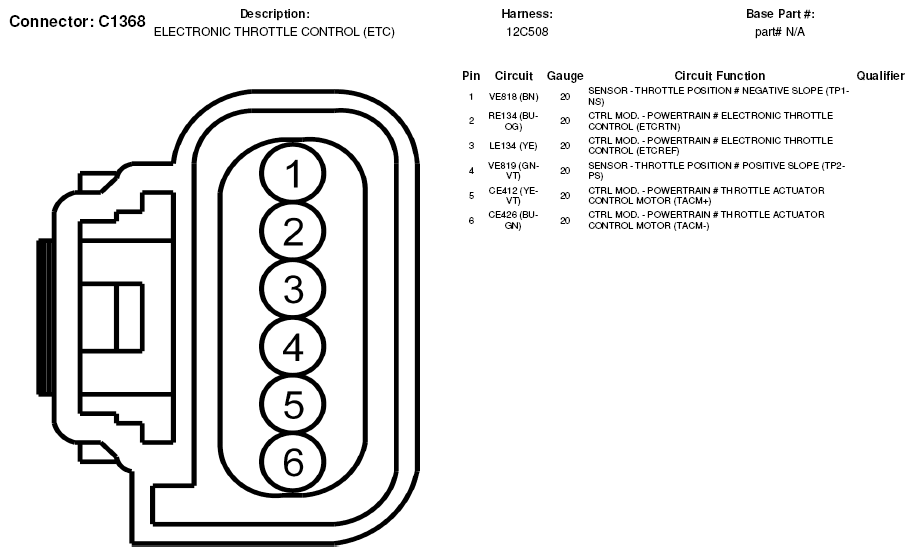

Fig 1: Electronic Throttle Control Connector End View (C1368)
G05603444
