Home › Mercury › 2008 › Sable Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Front Blower Motor Connector

Front Blower Motor Connector

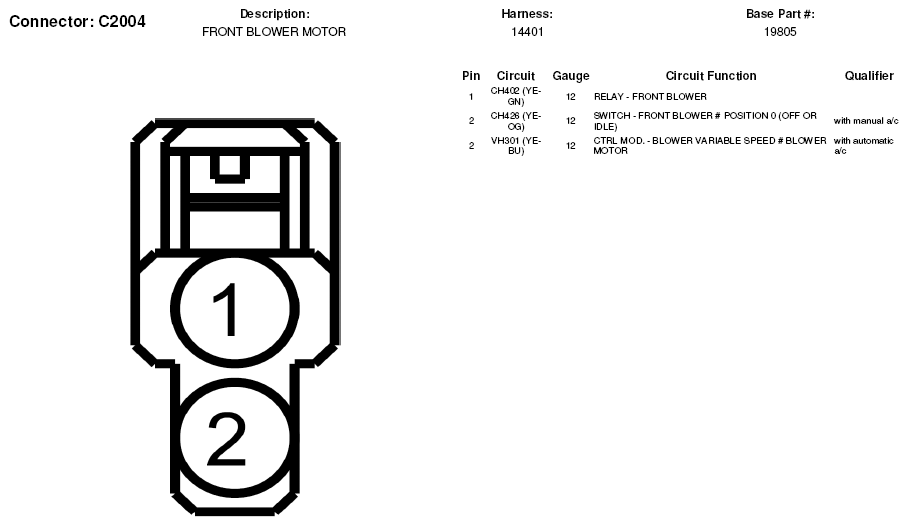

Fig 1: Front Blower Motor Connector End View (C2004)
G05603452
