OEM Connector End Views
›
Connector Views
›
Front Blower Motor Speed Controller Connector
Front Blower Motor Speed Controller Connector

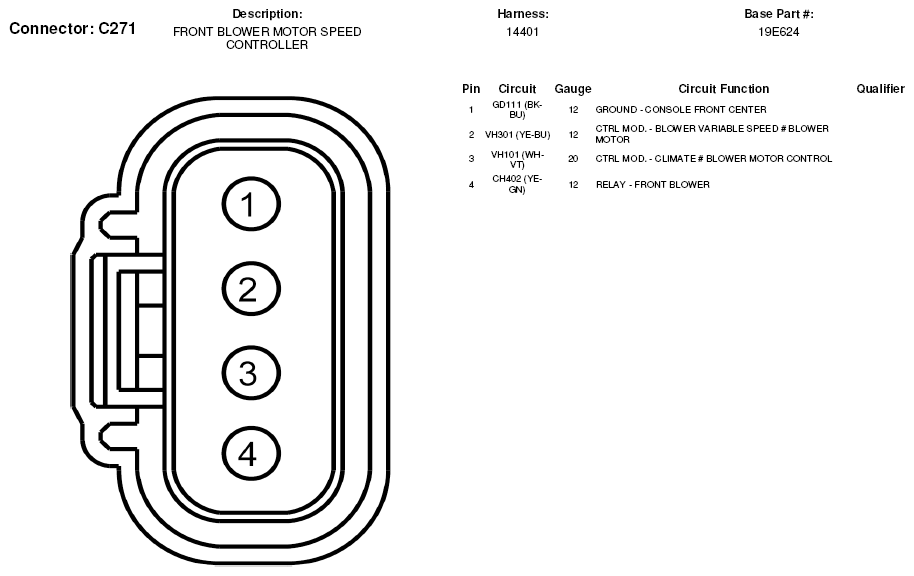

Fig 1: Front Blower Motor Speed Controller Connector End View (C271)
