Left Front Fog Lamp Connector
Left Front Fog Lamp Connector

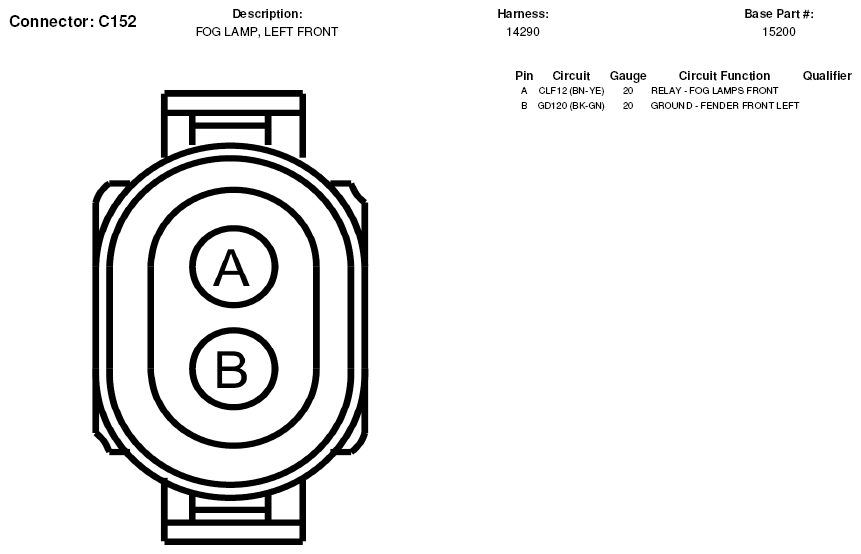

Fig 1: Left Front Fog Lamp Connector End View (C152)
