Left License Plate Lamp Connector

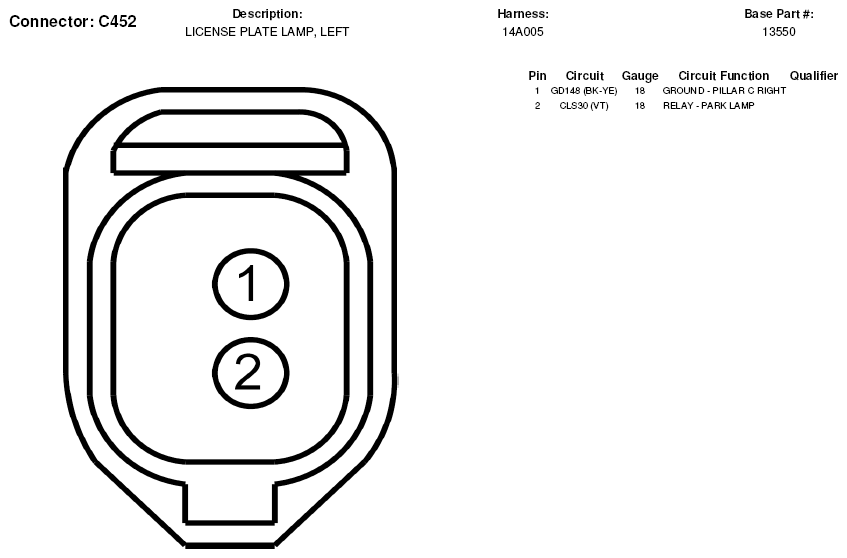

Fig 1: Left License Plate Lamp Connector End View (C452)

G05603356

Fig 2: Left License Plate Lamp Connector End View (C454)

G05603357
