Left Liftgate Obstacle Detection Strip Connector
Left Liftgate Obstacle Detection Strip Connector

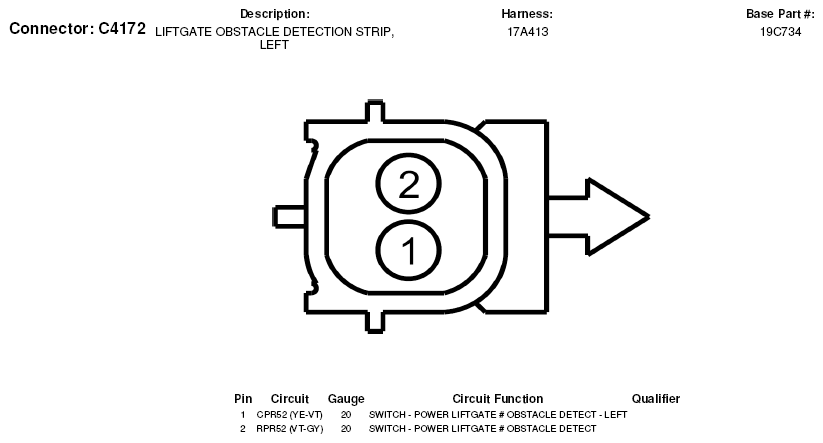

Fig 1: Left Liftgate Obstacle Detection Strip Connector End View (C4172)
