Left Rear Lamp Assembly Connector
Left Rear Lamp Assembly Connector

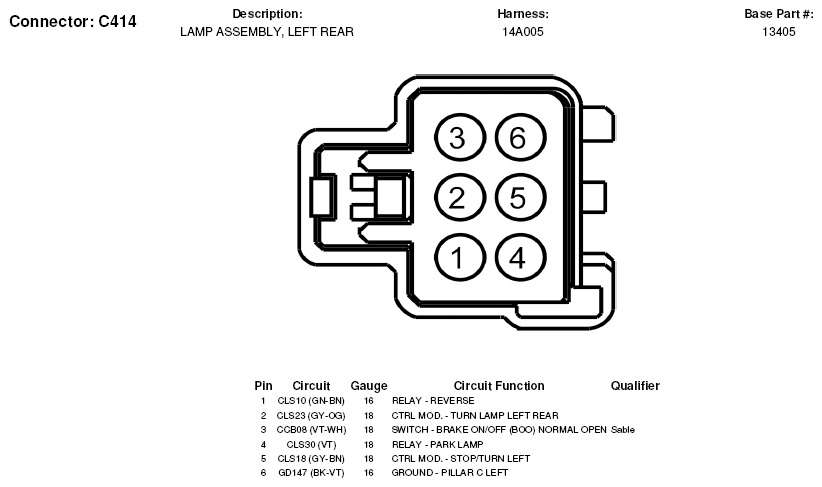

Fig 1: Left Rear Lamp Assembly Connector End View (C414)

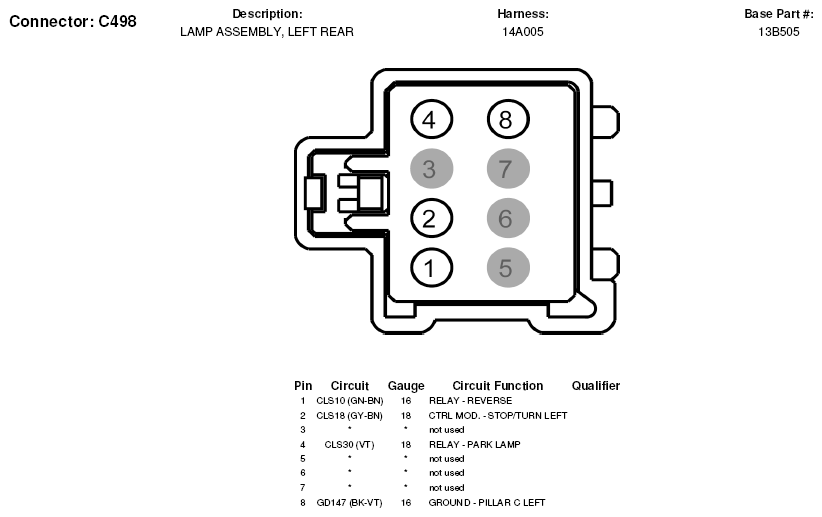

Fig 2: Left Rear Lamp Assembly Connector End View (C498)
