Left Rear Subwoofer Connector
Left Rear Subwoofer Connector

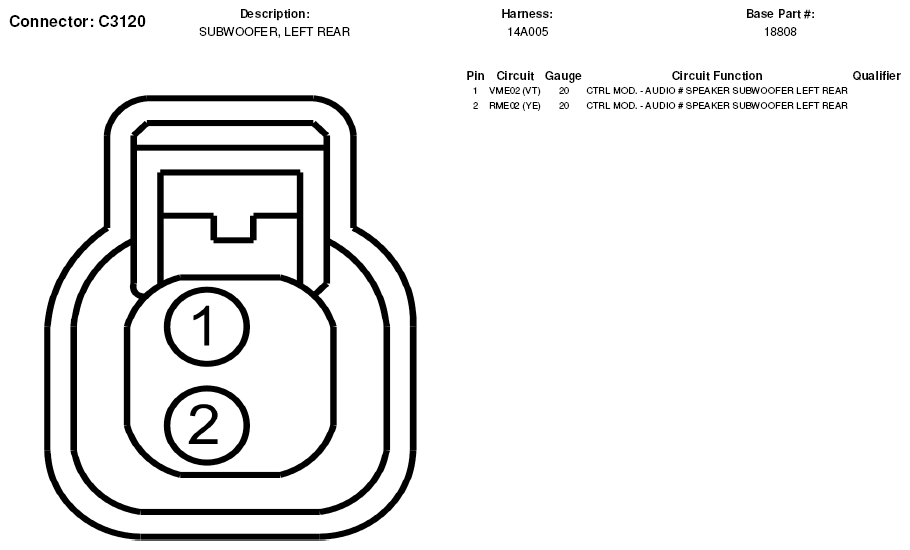

Fig 1: Left Rear Subwoofer Connector End View (C3120)
