Liftgate Drive Motor Assembly Connector

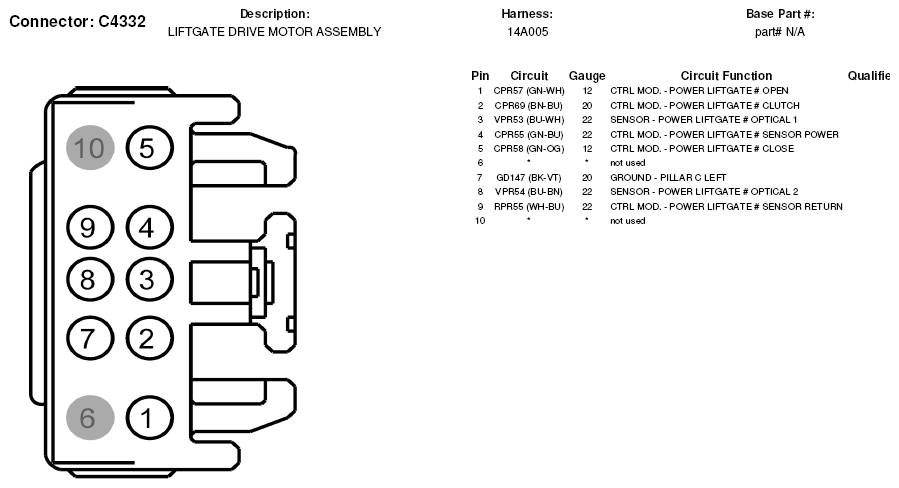

Fig 1: Liftgate Drive Motor Assembly Connector End View (C4332)
G05603548
