Liftgate Lock Actuator Connector
Liftgate Lock Actuator Connector

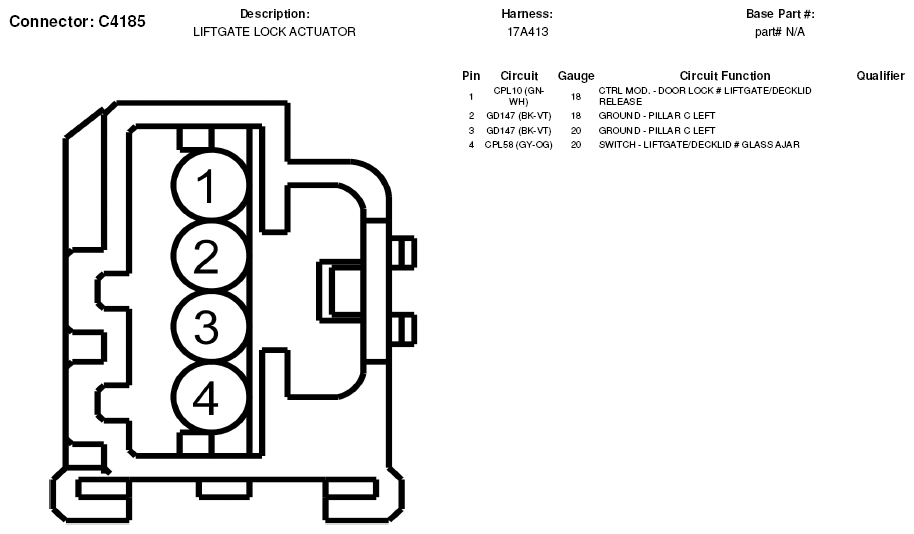

Fig 1: Liftgate Lock Actuator Connector End View (C4185)
