Overhead Console Connectors
Overhead Console Connectors

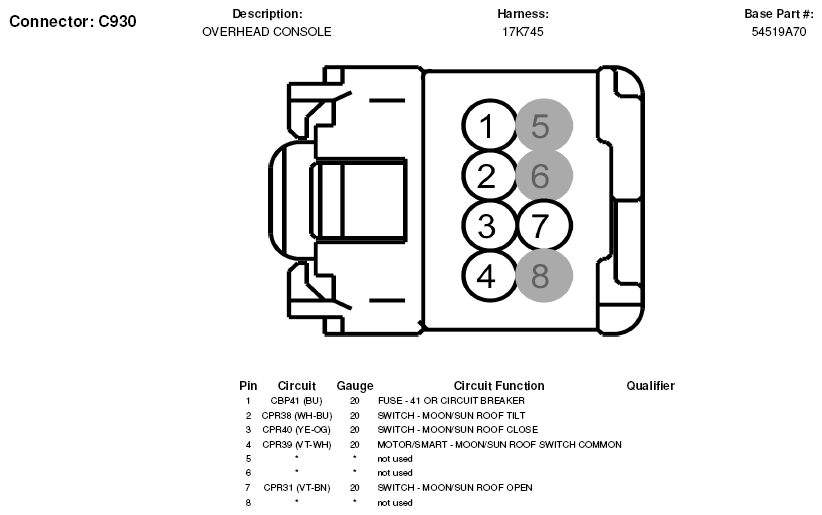

Fig 1: Overhead Console Connector End View (C930)

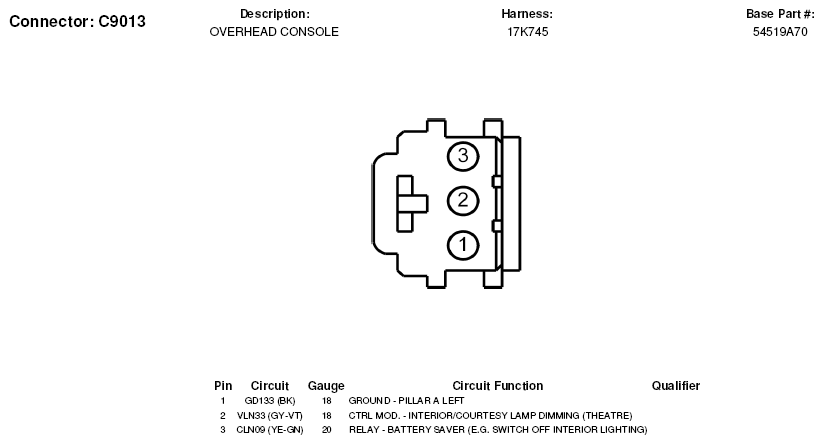

Fig 2: Overhead Console Connector End View (C9013)
