Rear Heated Seat Module Connector

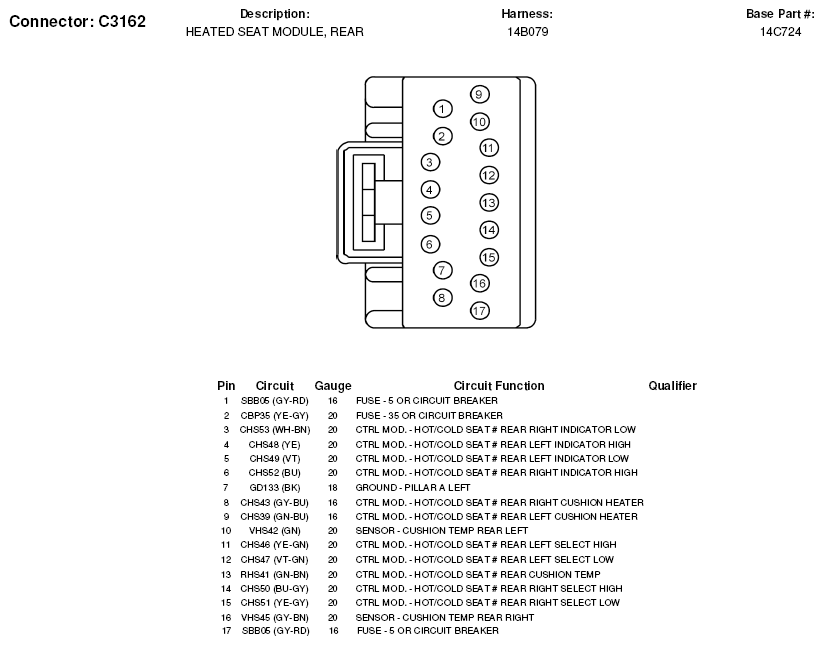

Fig 1: Rear Heated Seat Module Connector End View (C3162)
G05603499
