Rear Wiper Motor Assembly Connector

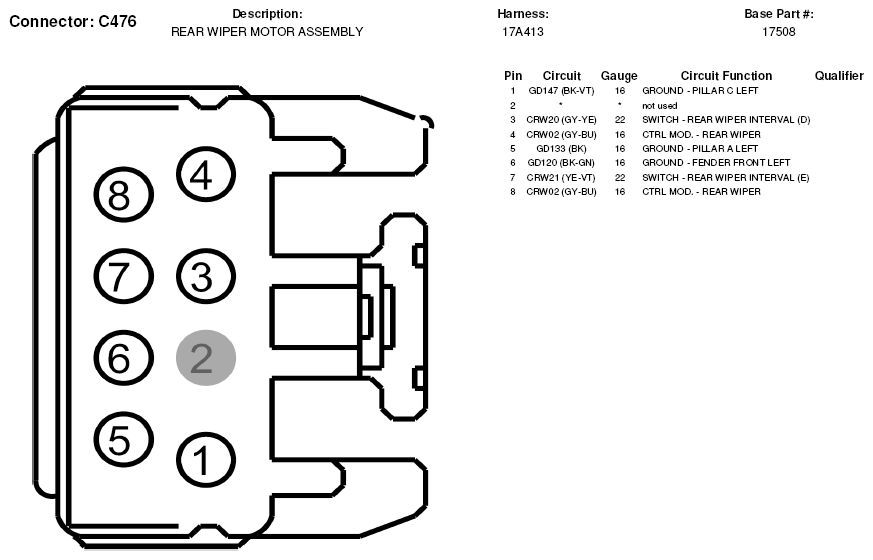

Fig 1: Rear Wiper Motor Assembly Connector End View (C476)
G05603363
