Right Liftgate Obstacle Detection Strip Connector
Right Liftgate Obstacle Detection Strip Connector

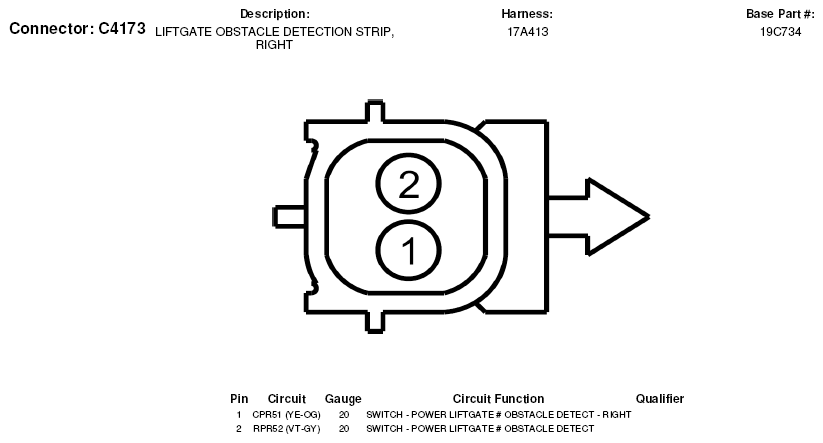

Fig 1: Right Liftgate Obstacle Detection Strip Connector End View (C4173)
