Right Rear Window Adjust Switch Connector
Right Rear Window Adjust Switch Connector

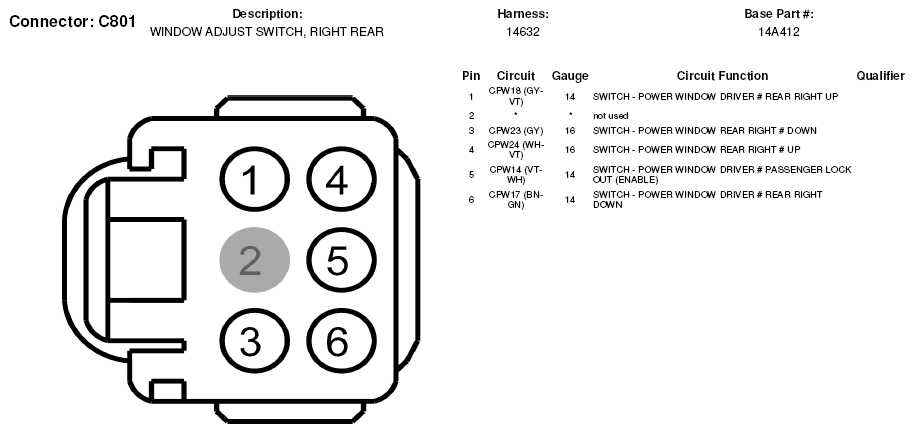

Fig 1: Right Rear Window Adjust Switch Connector End View (C801)
