Right Second Row Seat Control Switch Connector
Right Second Row Seat Control Switch Connector

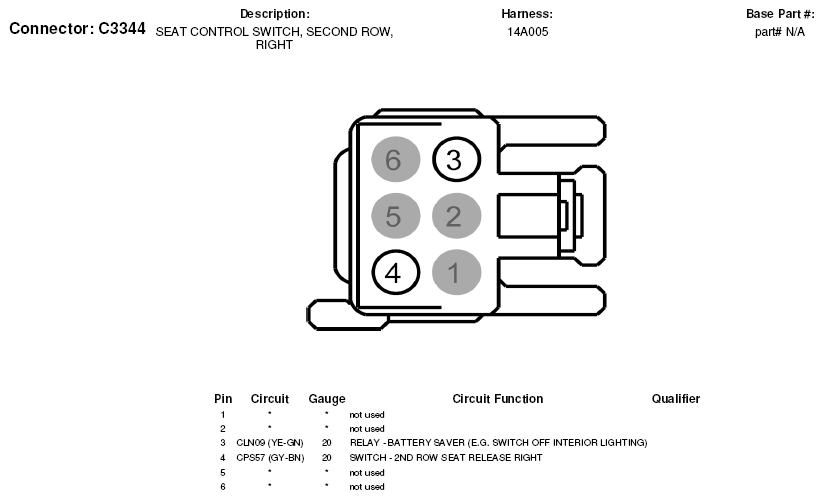

Fig 1: Right Second Row Seat Control Switch Connector End View (C3344)
