Stability Control Sensor Cluster Connector
Stability Control Sensor Cluster Connector

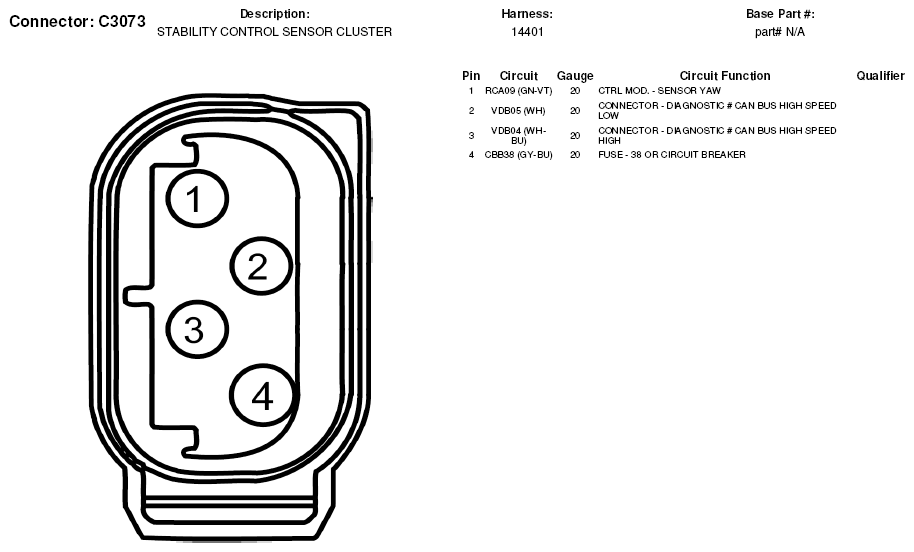

Fig 1: Stability Control Sensor Cluster Connector End View (C3073)
