Subwoofer Amplifier Connector

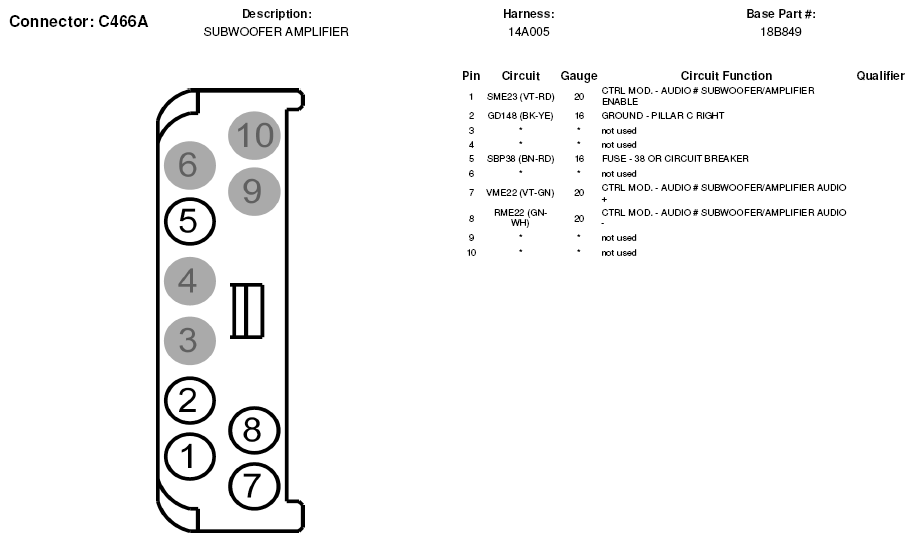

Fig 1: Subwoofer Amplifier Connector End View (C466A)

G05603360

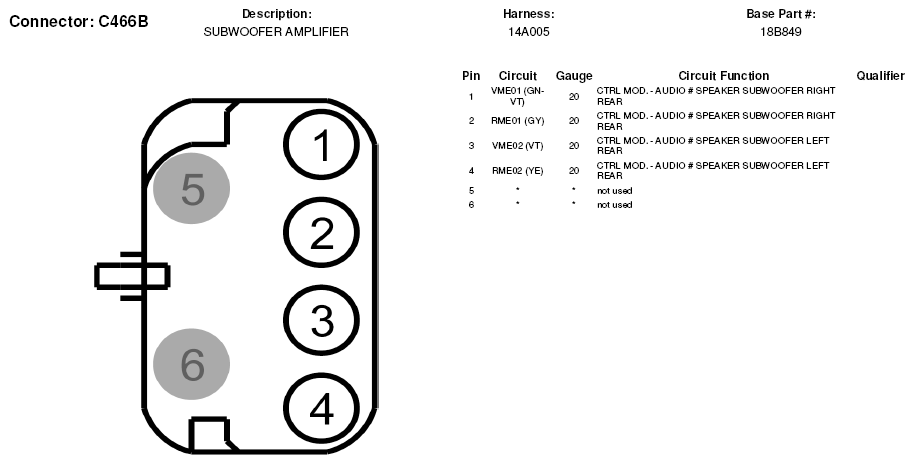

Fig 2: Subwoofer Amplifier Connector End View (C466B)

G05603361

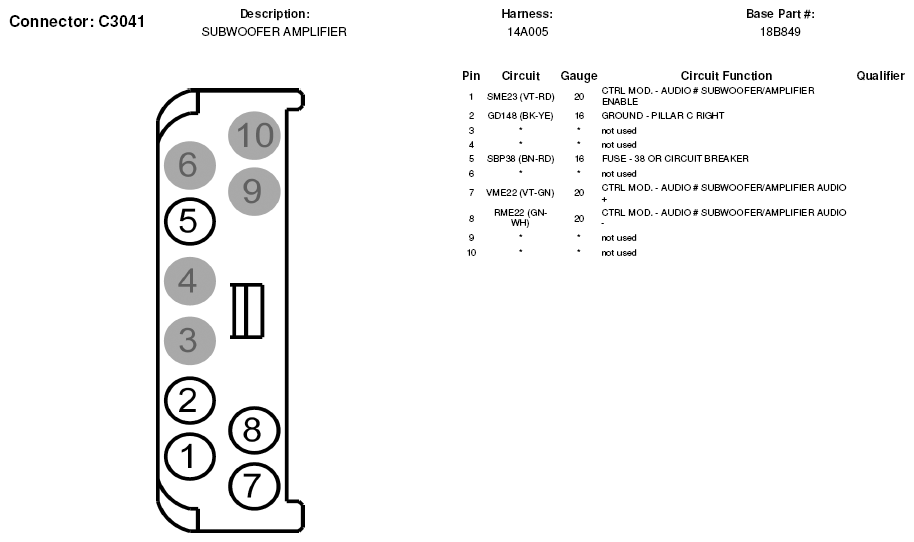

Fig 3: Subwoofer Amplifier Connector End View (C3041)

G05603482
