Windshield Wiper Motor Connector
Windshield Wiper Motor Connector

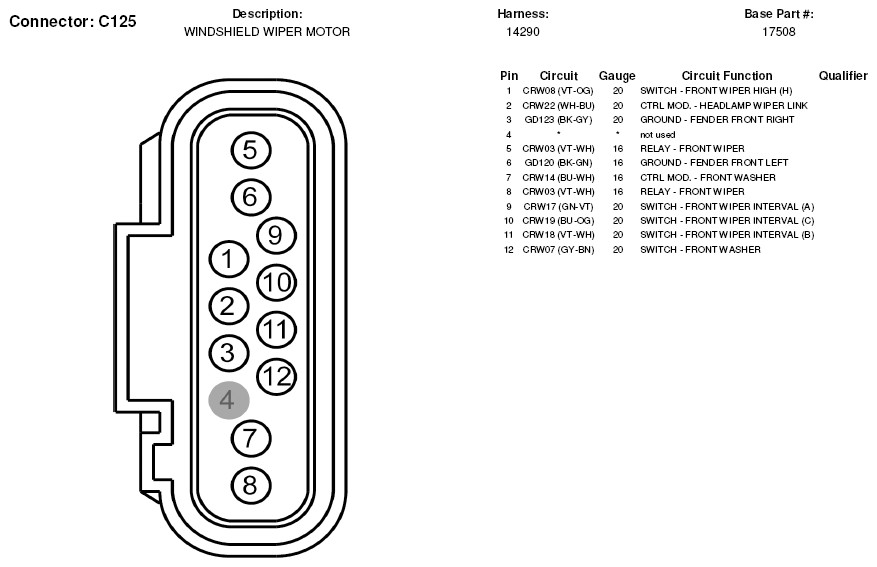

Fig 1: Windshield Wiper Motor Connector End View (C125)
