Console - Overhead

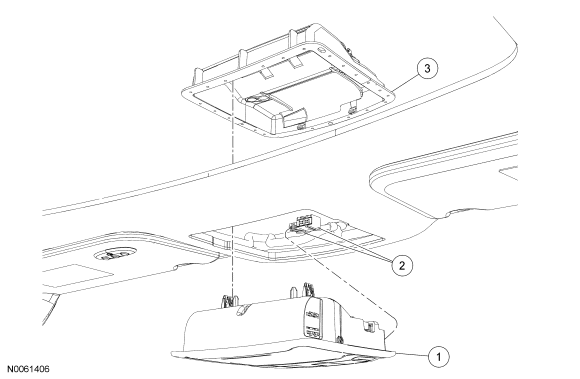

Fig 1: Exploded View Of Overhead Console

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	519A70	Overhead console
2	-	Overhead console electrical connectors
3	519K22	Overhead console bracket

Remove the overhead console.
- Pull downward on the overhead console.
- Disconnect the electrical connectors.
To install, reverse the removal procedure.
