Driver Door Disarm Switch Connector
Driver Door Disarm Switch Connector

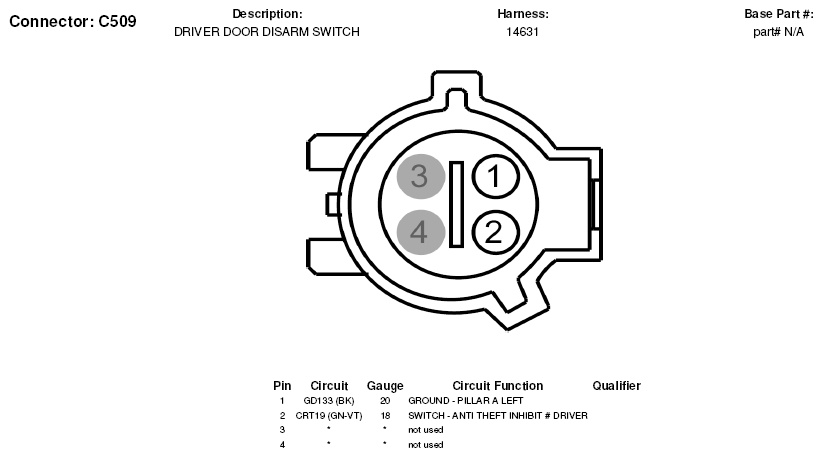

Fig 1: Driver Door Disarm Switch Connector End View (C509)
