Variable Camshaft Timing (VCT) Oil Control Solenoid : Notes

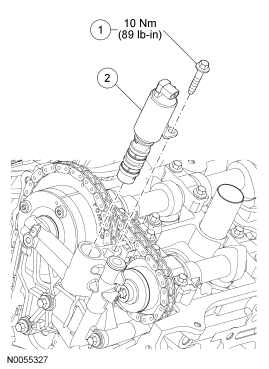

Fig 1: Exploded View Of Variable Camshaft Timing (VCT) Oil Control Solenoid With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500215	Variable camshaft timing (VCT) oil control solenoid bolt
2	6B297	VCT oil control solenoid
