Auxiliary Climate Control Housing: Notes
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

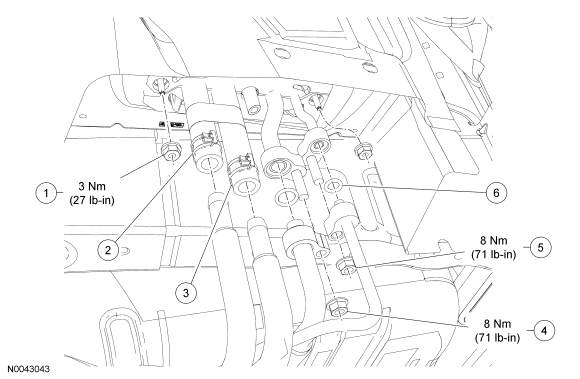

| Item | Part Number | Description |
|---|---|---|
| 1 | N807609 | Floorpan bracket nut (2 required) |
| 2 | 8287 | Auxiliary heater outlet hose clamp |
| 3 | 8287 | Auxiliary heater inlet hose clamp |
| 4 | N520413 | Rear auxiliary evaporator outlet line fitting nut |
| 5 | N520413 | Rear auxiliary evaporator inlet line fitting nut |
| 6 | 19E889 | O-ring (2 required) |

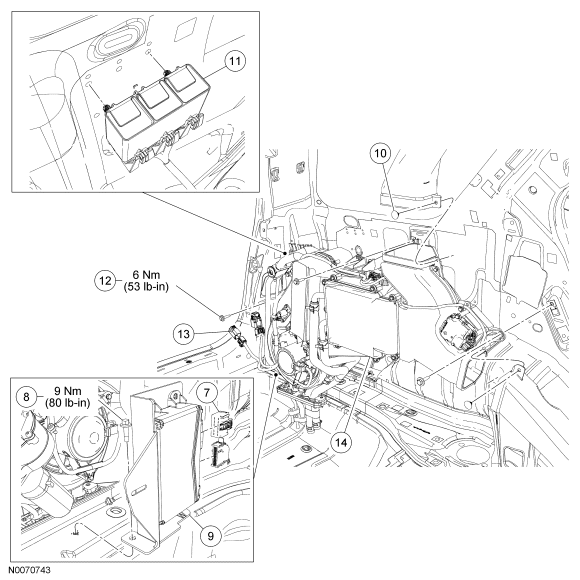

Fig 2: Exploded View Of Auxiliary Climate Control Housing Hoses & Tubes With Torque Specifications (2 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 7 | - | Power liftgate (PLG) module electrical connector (2 required) (part of 14A005) |
| 8 | W506013 | PLG module bolt |
| 9 | 404D06 | PLG module |
| 10 | N803678 | Auxiliary duct pin-type retainer (2 required) |
| 11 | - | Auxiliary blower motor relay pin-type retainer (part of 19949) |
| 12 | W505424 | Auxiliary climate control housing bolt (3 required) |
| 13 | - | Auxiliary climate control housing electrical connector (2 required) (part of 14A005) |
| 14 | 18C424 | Auxiliary climate control housing |
