Audio Control Module Connector

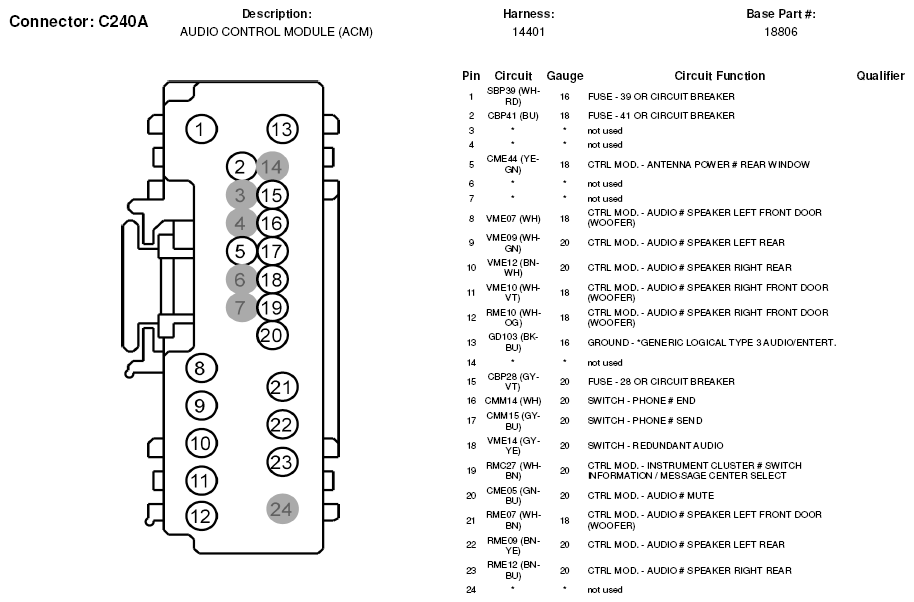

Fig 1: Audio Control Module Connector End View (C240A)

G05603301

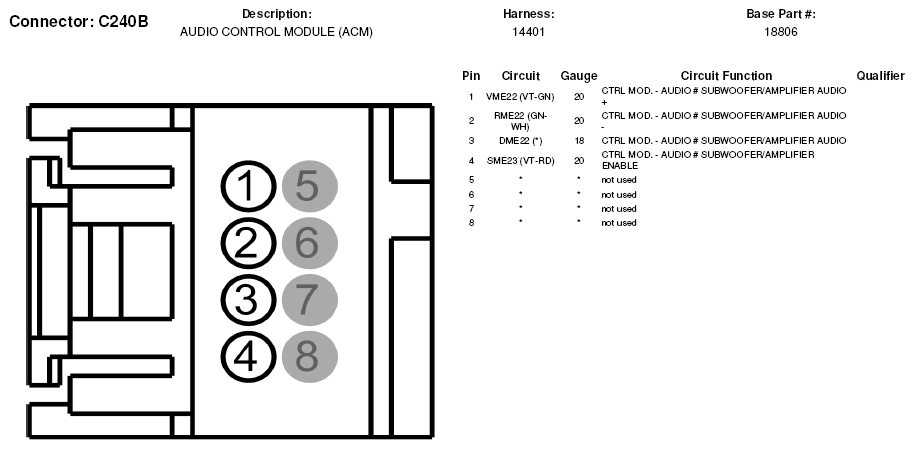

Fig 2: Audio Control Module Connector End View (C240B)

G05603302

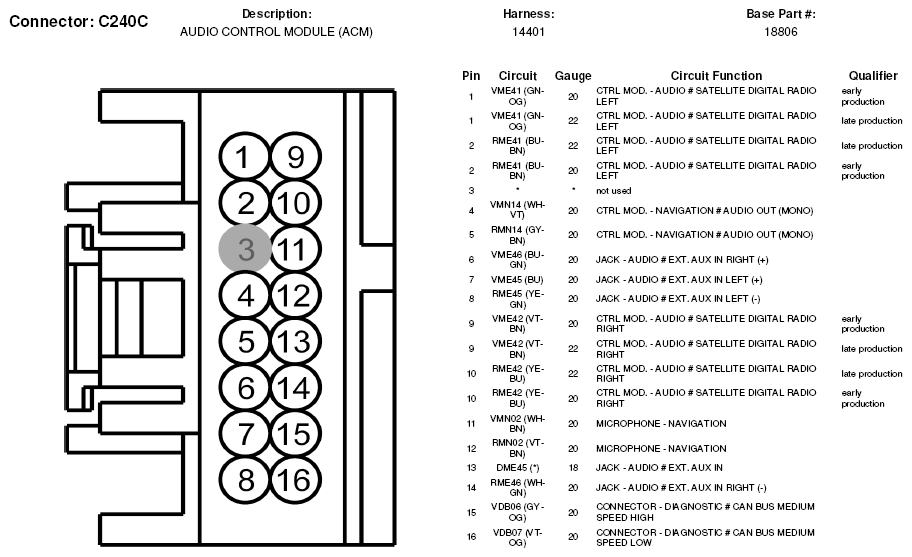

Fig 3: Audio Control Module Connector End View (C240C)

G05603303
