Powertrain Control Module (PCM): Notes

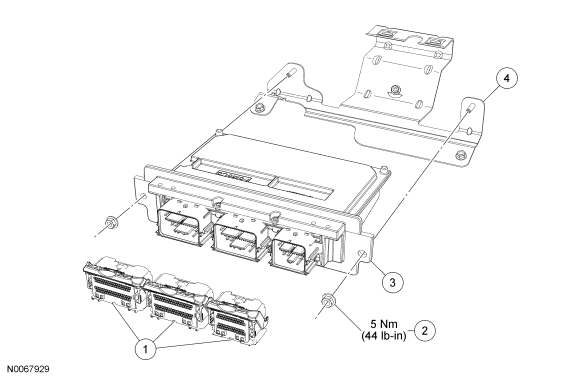

Fig 1: Exploded View Of Powertrain Control Module (PCM) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	PCM electrical connectors (part of 12B637) (3 required)
2	N804795	PCM nut (2 required)
3	12A650	PCM
4	12A659	PCM bracket
