Autolamp Sensor / Sunload Sensor Connector
Autolamp Sensor / Sunload Sensor Connector

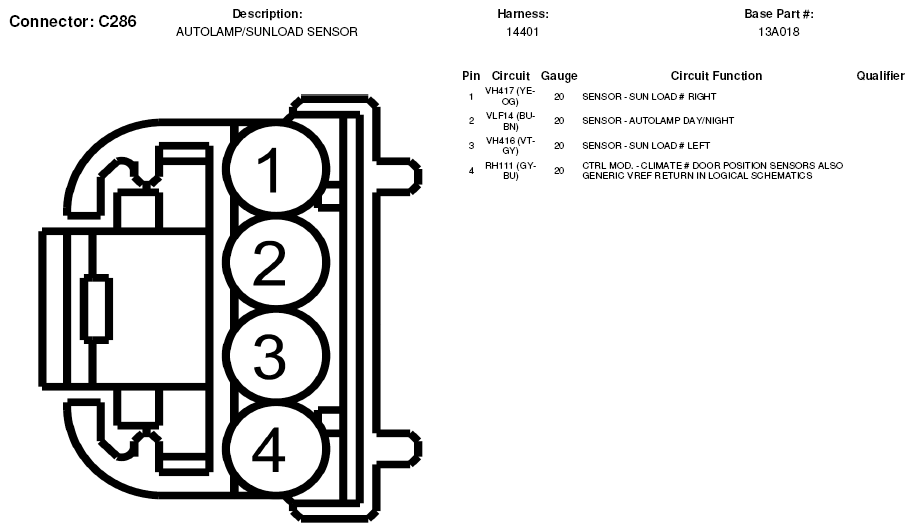

Fig 1: Autolamp Sensor / Sunload Sensor Connector End View (C286)
