Driver Safety Belt Buckle Switch Connector
Driver Safety Belt Buckle Switch Connector

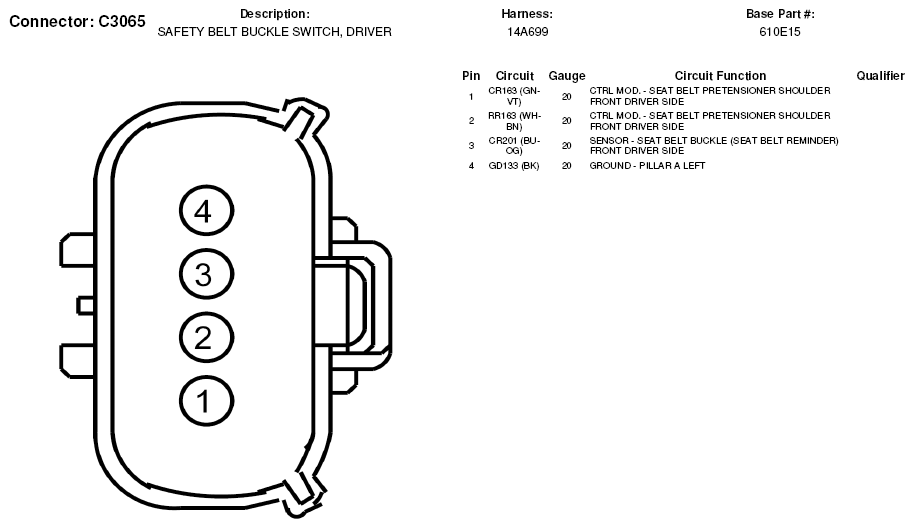

Fig 1: Driver Safety Belt Buckle Switch Connector End View (C3065)
