Driver Side Air Bag Module Connector

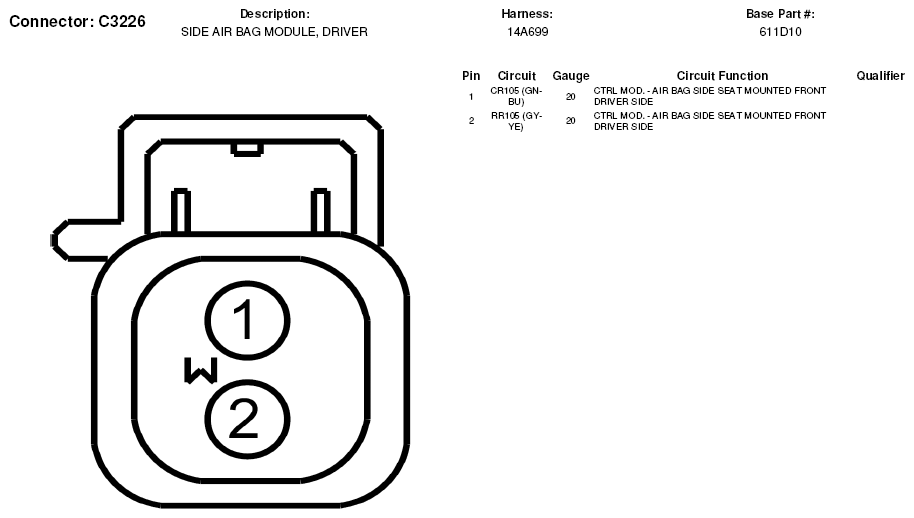

Fig 1: Driver Side Air Bag Module Connector End View (C3226)
G05603510
