Driver Side Front Seat Control Switch Connector

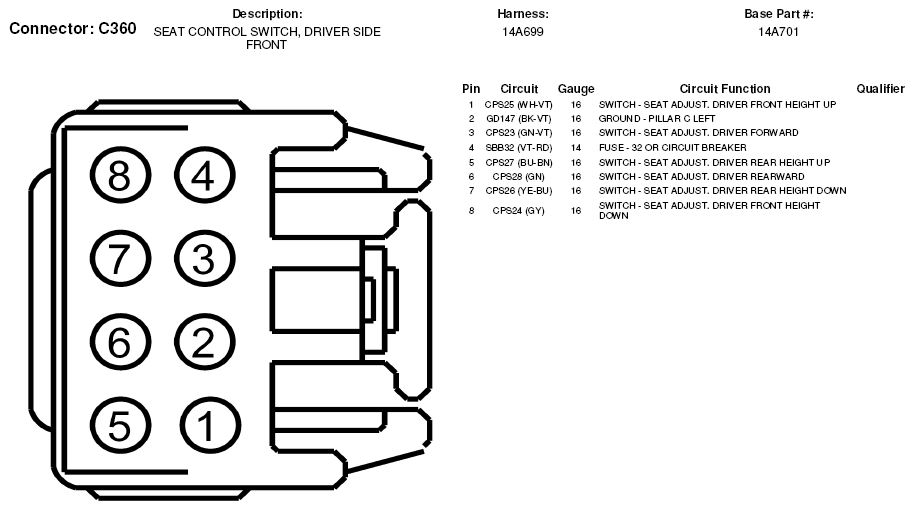

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360)

G05603339

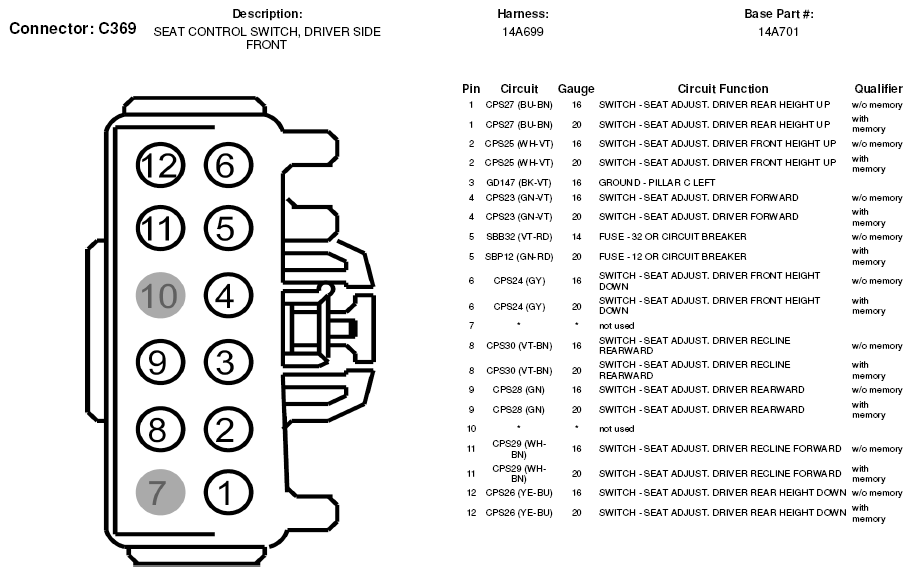

Fig 2: Driver Side Front Seat Control Switch Connector End View (C369)

G05603344
