Front Heated Seat Module Connector
Front Heated Seat Module Connector

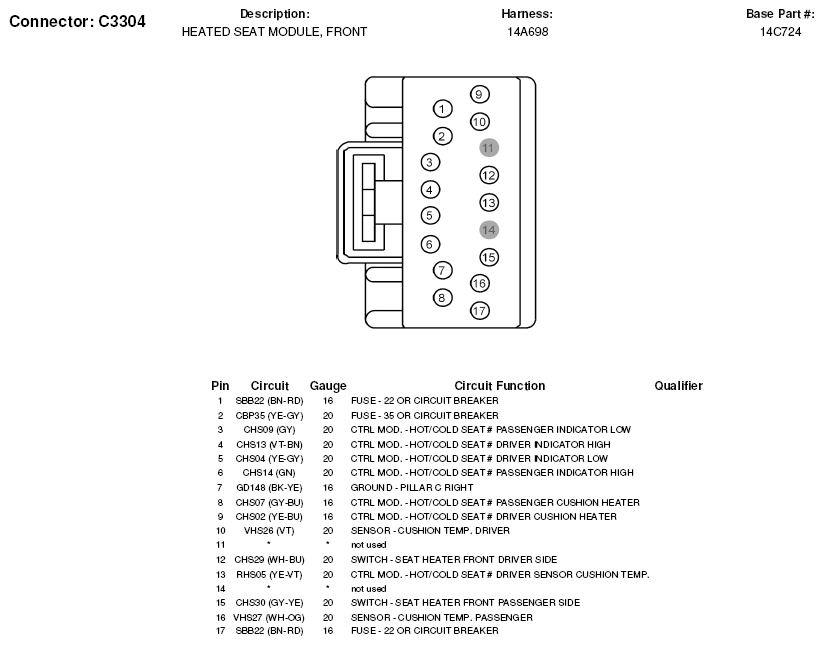

Fig 1: Front Heated Seat Module Connector End View (C3304)
